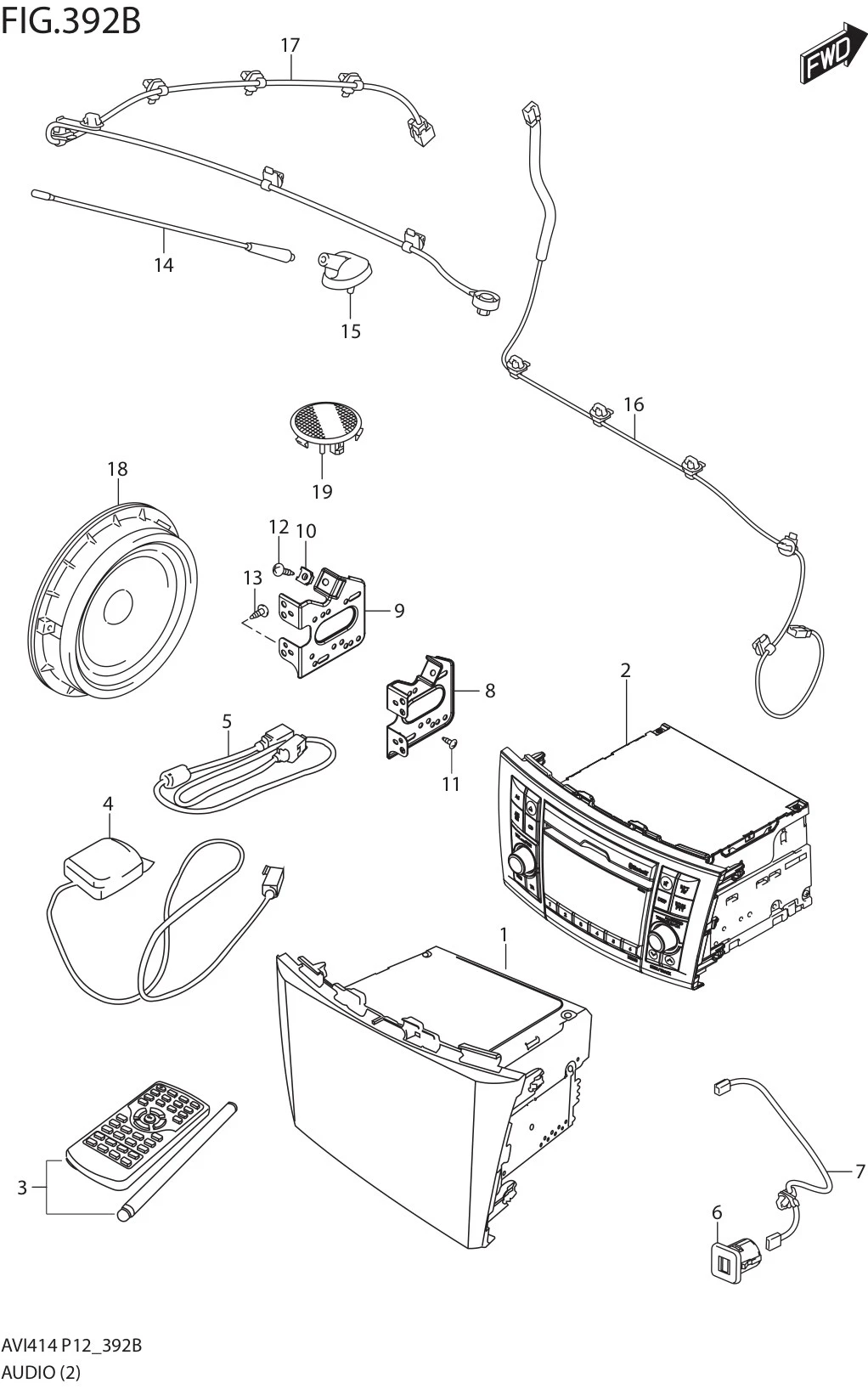

FIG.392B AUDIO

FIG.392B AUDIO
No No. Part Description Qty Price Per Pcs Remarks
1 990H0-990AE-025
SUB: 990H0-990AE-014
AUDIO HEAD UNIT WITH GPS 1 Rp7.824.500
2 990H0-990AE-017 REMOTE + STYLUS 1 Rp86.500
3 990H0-990AE-015 GPS ANTENA 1 Rp199.000
4 990H0-990AE-016 WIRE USB 1 Rp140.500
5 39105-59R00-000 SOCKET, USB 1 Rp367.500
6 39106-59R00-000 CABLE, USB 1 Rp468.500
7 39321-77M00-000
SUB: 39321B77M00N000
BRACKET, TUNER RH 1 Rp17.000
8 39322-77M00-000
SUB: 39322B77M00N000
BRACKET, TUNER LH 1 Rp17.500
9 09148-05045-000
SUB: 09148B05045N000
NUT 2 Rp4.000
10 02142-0508A-000
SUB: 02142B0508AN000
SCREW 6 Rp3.500
11 03541-0516A-000 SCREW 2 Rp3.500
12 03241-0512A-000
SUB: 03241B0512AN000
SCREW 4 Rp3.500
13 39251-77M00-000
SUB: 39251B77M00N000
ROD, ANTENNA 1 Rp130.500
14 39253-77M00-000
SUB: 39253B77M00N000
BASE, ANTENNA 1 Rp290.000
15 39270-77M00-000
SUB: 39270B77M00N000
FEEDER, ANT I/P 1 Rp76.000
16 39271-77M00-000
SUB: 39271B77M00N000
FEEDER, ANTENNA ROOF 1 Rp143.000
17 39102-77M01-000
SUB: 39102B77M01N000
SPEAKER ASSY 4 Rp147.000
18 39102-77MA0-R8R SPEAKER ASSY, TWEETER (BROWN) 2 Rp92.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
