ERTIGA DREZA

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.324B SPEEDOMETERFIG.330B HEADLAMPFIG.336A REAR LAMPFIG.340A WIRING HARNESSFIG.360B LOCK SETFIG.376B REAR WINDOW WIPERFIG.392B AUDIO

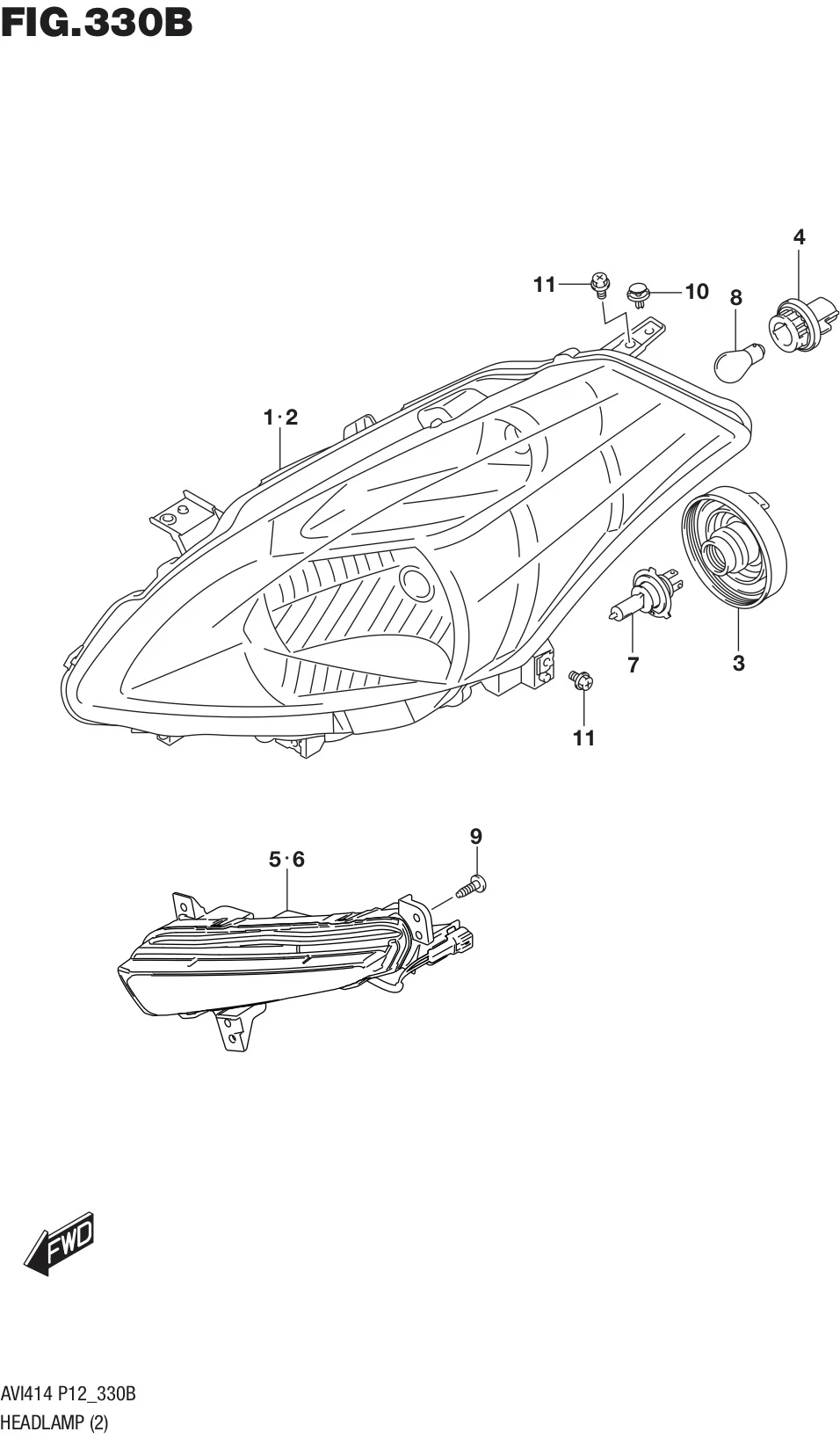

FIG.330B HEADLAMP

FIG.330B HEADLAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35120-77M30-000
SUB: 35120-77M02-000		 UNIT, HEADLAMP RH 1 Rp998.500
2 35320-77M30-000
SUB: 35320-77M02-000		 UNIT, HEADLAMP LH 1 Rp998.500
3 35179-64G00-000
SUB: 35179B64G00N000		 COVER, SOCKET 2 Rp27.500
4 36118-77A00-000 SOCKET, TURNSIGNAL LAMP 2 Rp73.500
5 36563-77M00-000 LAMP ASSY FR POSITION RH 1 Rp621.000
6 36564-77M00-000 LAMP ASSY FR POSITION LH 1 Rp621.000
7 09471-12182-000
SUB: 09471B12182N000		 BULB (12V60/55W,H4) 2 Rp70.000
8 09471-12186-000
SUB: 09471B12186N000		 BULB (12V21W) (AMBER) 2 Rp22.000
9 03541-0516A-000 SCREW 6 Rp3.500
10 09409-08327-000 CLIP 2 Rp15.000
11 09122-76006-000 SCREW (6X16) 8 Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
