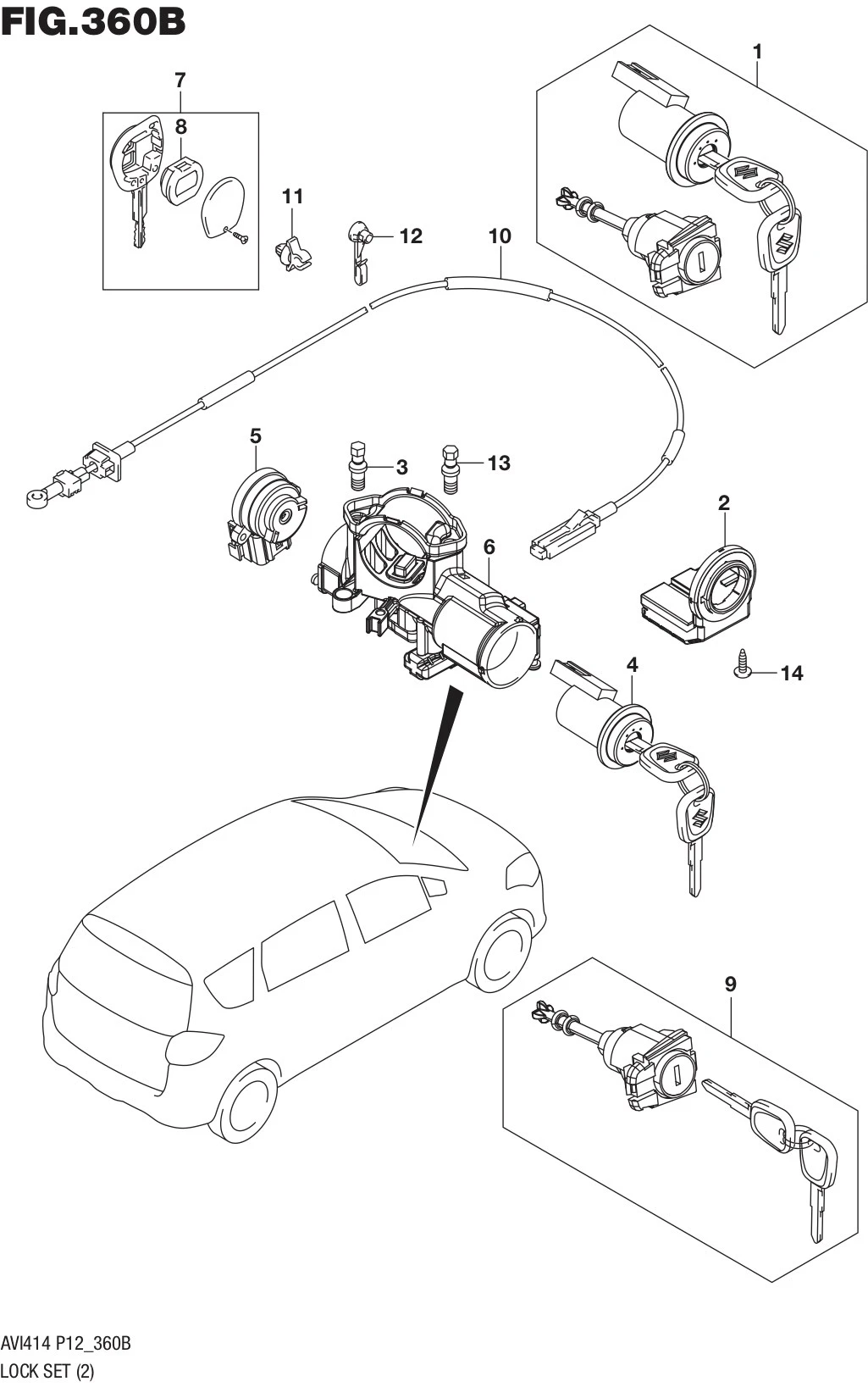

FIG.360B LOCK SET

FIG.360B LOCK SET
No No. Part Description Qty Price Per Pcs Remarks
1-2 3710B-77870-000 LOCK SET 1 Rp703.500 TYPE 3 : GL MT, GX MT
1-3 3710A-77850-000
SUB: 3710AB77850N000
LOCK SET 1 Rp2.552.500 TYPE 2 : GL AT, GX AT
1-4 3710B-77820-000 LOCK SET 1 Rp712.500 TYPE 3 : GL AT, GX AT
1-1 37109-77860-000
SUB: 37109B77860N000
LOCK SET 1 Rp4.537.500 TYPE 1, TYPE 2 : GL MT, GX MT
2 33970-68L00-000
SUB: 33970B68L00N000
CONTROLLER 1 Rp759.000
3-1 37152-84G00-000 BOLT 2 Rp35.500
3-2 37152-59R00-000 BOLT, STEERING LOCK 1 Rp6.000 Dreza
4-1 37109-77870-000
SUB: 37109B77870N000
LOCK ASSY, STEERING 1 Rp2.362.000 TYPE 1, TYPE 2 : GL MT, GX MT
4-2 3710B-77880-000 LOCK ASSY, STEERING 1 Rp647.000 TYPE 3 : GL MT, GX MT
4-3 3710A-77860-000
SUB: 3710AB77860N000
LOCK ASSY, STEERING 1 Rp2.741.000 TYPE 2 : GL AT, GX AT
4-4 3710B-77830-000 LOCK ASSY, STEERING 1 Rp662.000 TYPE 3 : GL AT, GX AT
5-1 37111-77M00-000
SUB: 37111B77M00N000
SWITCH 1 Rp316.500 TYPE 1, TYPE 2 : GL, GX
5-2 37111-77M00-000
SUB: 37111B77M00N000
SWITCH 1 Rp316.500 TYPE 3 : GL, GX,Dreza
6-1 37101-58M00-000
SUB: 37101B58M00N000
BODY, STEERING LOCK 1 Rp1.178.500 TYPE 1, TYPE 2 : GL MT, GX MT
6-4 37101-59R10-000 BODY, STEERING LOCK 1 Rp459.000 TYPE 3 : GL, GX, Dreza
6-3 37101-77M10-000
SUB: 37101B77M10N000
BODY, STEERING LOCK 1 Rp1.224.000 TYPE 2 : GL AT, GX AT
6-2 37101-59R00-000 BODY, STEERING LOCK 1 Rp457.500 TYPE 3 : GL MT, GX MT,Dreza
7-1 37145-77M30-000
SUB: 37145B77M30N000
KEY ASSY 1 Rp1.532.000 TYPE 1, TYPE 2 : GL, GX, Dreza
7-2 37145-59R00-000 KEY ASSY 1 Rp199.500 TYPE 3 : GL, GX
8 37182-68L30-000
SUB: 37182B68L30N000
•SWITCH ASSY, TRANSMITTER 1 Rp1.102.500
9-1 82270-63840-000
SUB: 82270B63840N000
CYLINDER SET, FR DOOR RH 1 Rp2.286.500 TYPE 1, TYPE 2 : GL, GX
9-2 82270-77810-000 CYLINDER SET, FR DOOR RH 1 Rp83.500 TYPE 3 : GL, GX
10 28551-71L10-000 CABLE, KEY INTERLOCK 1 Rp500.500 AT
11 DISCONTINUE
SUB: 09403-05312-000
CLAMP 1 - AT
12 09403-05315-000 CLAMP 1 Rp25.500 AT
13 37152-84G00-000 BOLT, STEERING LOCK 1 Rp35.500
14 37152-59R10-000 SCREW, IMM CONT 1 Rp4.500 4AT:Dreza

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
