  5. FIG.340A WIRING HARNESS

ERTIGA DREZA

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.324B SPEEDOMETERFIG.330B HEADLAMPFIG.336A REAR LAMPFIG.340A WIRING HARNESSFIG.360B LOCK SETFIG.376B REAR WINDOW WIPERFIG.392B AUDIO

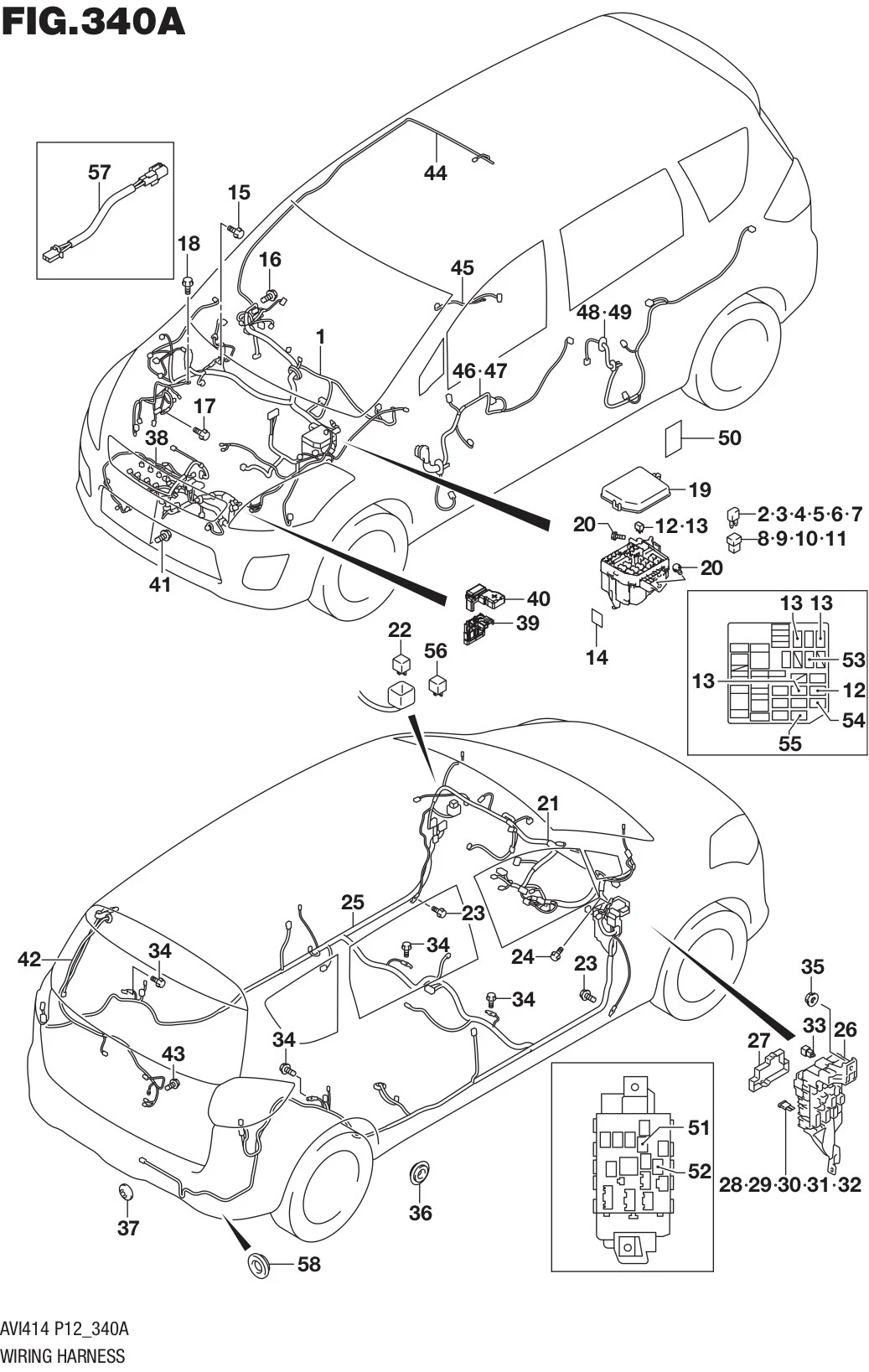

FIG.340A WIRING HARNESS

FIG.340A WIRING HARNESS
No No. Part Description Qty Price Per Pcs Remarks
1-1 36610-77M00-000
SUB: 36610B77M00N000		 HARNESS ASSY, MAIN 1 Rp3.773.500 TYPE 1, TYPE 2 : GA
1-2 36610-77M10-000
SUB: 36610B77M10N000		 HARNESS ASSY, MAIN 1 Rp3.724.500 TYPE 1, TYPE 2 : GL MT
1-3 36610-77M30-000
SUB: 36610B77M30N000		 HARNESS ASSY, MAIN 1 Rp3.858.500 TYPE 2 : GL AT
1-4 36610-77M20-000
SUB: 36610B77M20N000		 HARNESS ASSY, MAIN 1 Rp4.453.000 TYPE 1, TYPE 2 : GX MT
1-5 36610-77M40-000
SUB: 36610B77M40N000		 HARNESS ASSY, MAIN 1 Rp4.610.000 TYPE 2 : GX AT
1-6 36610-59R00-000 HARNESS ASSY, MAIN 1 Rp3.444.500 TYPE 3 : GA
1-7 36610-59R10-000 HARNESS ASSY, MAIN 1 Rp3.596.500 TYPE 3 : GL MT
1-8 36610-59R30-000 HARNESS ASSY, MAIN 1 Rp3.544.500 TYPE 3 : GL AT
1-9 36610-77M20-000
SUB: 36610B77M20N000		 HARNESS ASSY, MAIN 1 Rp4.453.000 TYPE 3 : GX MT
1-10 36610-77M40-000
SUB: 36610B77M40N000		 HARNESS ASSY, MAIN 1 Rp4.610.000 TYPE 3 : GX AT
1-11 36610-59RA0-000 HARNESS ASSY, MAIN 1 Rp4.191.000 Dreza:5MT
1-12 36610-59RB0-000 HARNESS ASSY, MAIN 1 Rp4.163.000 Dreza:4AT
2 09481-07504-000 •FUSE (7.5A) 1 Rp13.000
3 09481-10504-000 •FUSE (10A) 1 Rp12.500
4 09481-15504-000 •FUSE (15A) 0 Rp13.000
5 09481-20504-000 •FUSE (20A) 1 Rp14.500 TYPE 1, TYPE 2 : GL, GX, TYPE 3 : GA, GL, GX
6 09481-25504-000 •FUSE (25A) 1 Rp17.500 TYPE 1, TYPE 2 : GX ; TYPE 3 : GA, GL GX
7 09481-30504-000 •FUSE (30A) 1 Rp15.000
8 09481-30403-000 •FUSE (30A) 2 Rp41.000
9 09481-40403-000 •FUSE (40A) 0 Rp51.500
10 09481-50403-000 •FUSE (50A) 1 Rp51.000
11 09481-60403-000 •FUSE (60A) 1 Rp52.000
12 38860-77M00-000
SUB: 38860B77M00N000		 •RELAY ASSY, STARTER 1 Rp45.000
13 38860-77M00-000
SUB: 38860B77M00N000		 •RELAY ASSY, RADIATOR 3 Rp45.000
14 77151-82000-000
SUB: 77151B82000N000		 •SEAL, HARNESS HOLE 1 Rp7.000 TYPE 1, TYPE 2, TYPE 3 : GA, GL
15 09115-06005-000 BOLT (6X16) 2 Rp14.000
16 09115-06005-000 BOLT (6X16) 1 Rp14.000
17 09115-06005-000 BOLT (6X16) 1 Rp14.000
18 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
19 36717-77M00-000
SUB: 36717B77M00N000		 COVER, RELAY BOX 1 Rp137.500
20 02162-0616A-000 SCREW 2 Rp3.000
21-1 36620-77M00-000
SUB: 36620B77M00N000		 HARNESS ASSY, INSTRUMENT PANEL 1 Rp1.533.000 TYPE 1, TYPE 2 : GA
21-2 36620-77M10-000
SUB: 36620B77M10N000		 HARNESS ASSY, INSTRUMENT PANEL 1 Rp1.615.500 TYPE 1, TYPE 2 : GL N/RR AC
21-3 36620-77M30-000
SUB: 36620B77M30N000		 HARNESS ASSY, INSTRUMENT PANEL 1 Rp1.934.000 TYPE 1, TYPE 2 : GL W/RR AC
21-4 36620-77M20-000
SUB: 36620B77M20N000		 HARNESS ASSY, INSTRUMENT PANEL 1 Rp2.246.500 TYPE 1, TYPE 2 : GX N/RR AC
21-5 36620-77M40-000
SUB: 36620B77M40N000		 HARNESS ASSY, INSTRUMENT PANEL 1 Rp2.426.000 TYPE 1, TYPE 2 : GX W/RR AC
21-6 36620-59R00-000 HARNESS ASSY, INSTRUMENT PANEL 1 Rp1.778.000 TYPE 3 : GA
21-7 36620-59R10-000 HARNESS ASSY, INSTRUMENT PANEL 1 Rp1.865.000 TYPE 3 : GL
21-8 36620-59R20-000 HARNESS ASSY, INSTRUMENT PANEL 1 Rp1.889.000 TYPE 3 : GX
21-9 36620-59R30-000 HARNESS ASSY, INSTRUMENT PANEL 1 Rp1.995.000 Dreza
22 38860-77M10-000
SUB: 38860B77M10N000		 •RELAY ASSY, HEATER 1 Rp71.000
23 09115-06005-000 BOLT (6X16) 2 Rp14.000
24 02162-0612A-000 SCREW 1 Rp11.000
25-1 36630-77M01-000
SUB: 36630B77M01N000		 HARNESS ASSY, FLOOR 1 Rp2.509.500 TYPE 1, TYPE 2 : GA MANUAL WINDOW
25-2 36630-77M50-000
SUB: 36630B77M50N000		 HARNESS ASSY, FLOOR 1 Rp2.968.000 TYPE 1, TYPE 2 : GA POWER WINDOW
25-3 36630-77M11-000
SUB: 36630B77M11N000		 HARNESS ASSY, FLOOR 1 Rp3.105.500 TYPE 1, TYPE 2 : GL MT
25-4 36630-77M31-000
SUB: 36630B77M31N000		 HARNESS ASSY, FLOOR 1 Rp3.134.500 TYPE 2 : GL AT
25-5 36630-77M21-000
SUB: 36630B77M21N000		 HARNESS ASSY, FLOOR 1 Rp3.130.500 TYPE 1, TYPE 2 : GX MT
25-6 36630-77M41-000
SUB: 36630B77M41N000		 HARNESS ASSY, FLOOR 1 Rp3.388.000 TYPE 2 : GX AT
25-7 36630-59R00-000 HARNESS ASSY, FLOOR 1 Rp2.874.500 TYPE 3 : GA
25-8 36630-59R10-000 HARNESS ASSY, FLOOR 1 Rp3.280.500 TYPE 3 : GL MT
25-9 36630-59R30-000 HARNESS ASSY, FLOOR 1 Rp3.275.000 TYPE 3 : GL AT
25-10 36630-59R20-000 HARNESS ASSY, FLOOR 1 Rp3.011.000 TYPE 3 : GX MT
25-11 36630-59R40-000 HARNESS ASSY, FLOOR 1 Rp3.189.500 TYPE 3 : GX AT
25-12 36630-59RA0-000 HARNESS ASSY, FLOOR 1 Rp3.223.500 Dreza:5MT
25-13 36630-59RB0-000 HARNESS ASSY, FLOOR 1 Rp3.536.000 Dreza:4AT
26-1 36710-77M00-000
SUB: 36710B77M00N000		 •BOX ASSY, JUNCTION 1 Rp1.047.000 TYPE 1, TYPE 2 : GA, GL, GX
26-2 36710-59R00-000 •BOX ASSY, JUNCTION 1 Rp1.275.000 TYPE 3 : GA, GL, GX
27-1 36717-68LP3-000
SUB: 36717-71PP0-000		 ••COVER, FUSE 0 Rp87.500 TYPE 1, TYPE 2 : GA, GL, GX
27-2 36717-60MP0-000 ••COVER, FUSE 0 Rp39.500 TYPE 3 : GA, GL, GX
28 09481-07504-000 ••FUSE (7.5A) 0 Rp13.000
29 09481-10504-000 ••FUSE (10A) 0 Rp12.500
30 09481-15504-000 ••FUSE (15A) 0 Rp13.000
31 09481-20504-000 ••FUSE (20A) 0 Rp14.500
32 09481-25504-000 ••FUSE (25A) 0 Rp17.500
33 09481-30403-000 ••FUSE (30A) 0 Rp41.000
34 09115-06005-000 BOLT (6X16) 4 Rp14.000
35 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
36 09250-25007-000 CAP (OD:25.0) 2 Rp10.500 TYPE 1, TYPE 2 : GA, GL, TYPE 3 : GA, GL, GX
37 09250-30002-000
SUB: 72999-67H00-000		 CAP, HARNESS HOLE 1 Rp5.500 TYPE 1 : GA
38-1 36650-77M00-000
SUB: 36650B77M00N000		 HARNESS ASSY, ENGINE 1 Rp2.914.500 TYPE 2 : GA
38-2 36650-77M00-000
SUB: 36650B77M00N000		 HARNESS ASSY, ENGINE 1 Rp2.914.500 TYPE 1,TYPE 2 : GL MT, GX MT
38-3 36650-77M10-000
SUB: 36650B77M10N000		 HARNESS ASSY, ENGINE 1 Rp3.346.000 TYPE 2 : GL AT, GX AT
38-4 36650-59R00-000 HARNESS ASSY, ENGINE 1 Rp2.678.500 TYPE 3 : GA
38-5 36650-59R00-000 HARNESS ASSY, ENGINE 1 Rp2.678.500 TYPE 3 : GL MT, GX MT
38-6 36650-59R30-000 HARNESS ASSY, ENGINE 1 Rp2.902.000 TYPE 3 : GL AT, GX AT, Dreza
38-7 36650-59R10-000 HARNESS ASSY, ENGINE 1 Rp2.542.500 5MT:Dreza
39 36739-86J00-000 •FUSE, BATTERY 1 Rp284.500
40 36694-68K10-000
SUB: 36694B68K00N000		 •COVER, BATTERY TERMINAL 1 Rp98.000
41 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
42-1 36680-77M00-000
SUB: 36680B77M00N000		 HARNESS ASSY, BACK DOOR 1 Rp235.500 TYPE 1, TYPE 2 : GA
42-2 36680-77M10-000
SUB: 36680B77M10N000		 HARNESS ASSY, BACK DOOR 1 Rp272.000 TYPE 1, TYPE 2 :GL, GX, TYPE 3 : GA, GL, GX
42-3 36680-77M30-000 HARNESS ASSY, BACK DOOR 1 Rp239.500 Dreza
43 09115-06005-000 BOLT (6X16) 1 Rp14.000
44-1 36820-77M00-000
SUB: 36820B77M00N000		 WIRE, ROOF 1 Rp106.500 N/REAR AIR CONDITIONER
44-2 36820-77M10-000
SUB: 36820B77M10N000		 WIRE, ROOF 1 Rp173.000 W/REAR AIR CONDITIONER
45 36840-77M00-000
SUB: 36840B77M00N000		 WIRE, FUEL 1 Rp119.500
46-1 36756-77M00-000
SUB: 36756B77M00N000		 WIRE, DRIVER DOOR 1 Rp105.500 TYPE 1, TYPE 2 : GA MANUAL WINDOW
46-2 36756-77M20-000
SUB: 36756B77M20N000		 WIRE, DRIVER DOOR 1 Rp419.000 TYPE 1, TYPE 2 : GA POWER WINDOW
46-3 36756-77M10-000
SUB: 36756B77M10N000		 WIRE, DRIVER DOOR 1 Rp440.000 TYPE 1, TYPE 2 :GL, GX
46-4 36756-59R00-000 WIRE, DRIVER DOOR 1 Rp362.500 TYPE 3 : GA
46-5 36756-59R10-000 WIRE, DRIVER DOOR 1 Rp443.500 TYPE 3 : GL
46-6 36756-59R20-000 WIRE, DRIVER DOOR 1 Rp470.000 TYPE 3 : GX
47-1 36757-77M00-000
SUB: 36757B77M00N000		 WIRE, SUB DOOR 1 Rp97.500 TYPE 1, TYPE 2 : GA MANUAL WINDOW
47-2 36757-77M20-000
SUB: 36757B77M20N000		 WIRE, DRIVER DOOR 1 Rp278.000 TYPE 1, TYPE 2 : GA POWER WINDOW
47-3 36757-77M10-000
SUB: 36757B77M10N000		 WIRE, SUB DOOR 1 Rp289.500 TYPE 1, TYPE 2 :GL, GX
47-4 36757-77M10-000
SUB: 36757B77M10N000		 WIRE, SUB DOOR 1 Rp289.500 TYPE 3 : GA
47-5 36757-77M10-000
SUB: 36757B77M10N000		 WIRE, SUB DOOR 1 Rp289.500 TYPE 3 : GL
47-6 36757-77M10-000
SUB: 36757B77M10N000		 WIRE, SUB DOOR 1 Rp289.500 TYPE 3 : GX
48-1 36751-77M00-000
SUB: 36751B77M00N000		 WIRE, RR DOOR RH 1 Rp99.500 TYPE 1, TYPE 2 : GA MANUAL WINDOW
48-2 36751-77M20-000
SUB: 36751B77M20N000		 WIRE, RR DOOR RH 1 Rp242.500 TYPE 1, TYPE 2 : GA POWER WINDOW
48-3 36751-77M10-000
SUB: 36751B77M10N000		 WIRE, RR DOOR RH 1 Rp250.500 TYPE 1, TYPE 2 :GL, GX, TYPE 3 : GA, GL, GX, Dreza
49-1 36751-77MA0-000
SUB: 36751B77MA0N000		 WIRE, RR DOOR LH 1 Rp100.500 TYPE 1, TYPE 2 : GA MANUAL WINDOW
49-2 36751-77MC0-000
SUB: 36751B77MC0N000		 WIRE, RR DOOR LH 1 Rp242.500 TYPE 1, TYPE 2 : GA POWER WINDOW
49-3 36751-77MB0-000
SUB: 36751B77MB0N000		 WIRE, RR DOOR LH 1 Rp250.500 TYPE 1, TYPE 2 :GL, GX, TYPE 3 : GA, GL, GX
50 77151-82000-000
SUB: 77151B82000N000		 SEAL, HARNESS HOLE 4 Rp7.000 TYPE 1, TYPE 2 : GA
51 38860-77M00-000
SUB: 38860B77M00N000		 RELAY ASSY, HORN 1 Rp45.000
52 38860-76F01-000
SUB: 38860B76F01N000		 RELAY ASSY, REAR DEFOGGER 1 Rp47.000 TYPE 1 : GX W/ REAR AC, TYPE 3 : GA, GL, GX
53 38860-77M00-000
SUB: 38860B77M00N000		 RELAY ASSY, MAIN 1 Rp45.000
54 38860-77M00-000
SUB: 38860B77M00N000		 RELAY ASSY, FUEL PUMP 1 Rp45.000
55 38860-77M00-000
SUB: 38860B77M00N000		 RELAY ASSY, FRONT FOG LAMP 1 Rp45.000 TYPE 1,TYPE 2,TYPE 3 : GL, GX
56 38860-77M10-000
SUB: 38860B57L00N000		 RELAY ASSY, BLOWER SWITCH 1 Rp71.000 N/REAR AIR CONDITIONER
57 36691-68L00-000 WIRE, PASSENGER AIR BAG 1 Rp240.500 TYPE 1, TYPE 2 : GX, TYPE 3 : GA, GL, GX
58 09250-30002-000
SUB: 09250-30002L000		 CAP (OD:38.5) 1 Rp5.500 TYPE 1, TYPE 2 : GA
